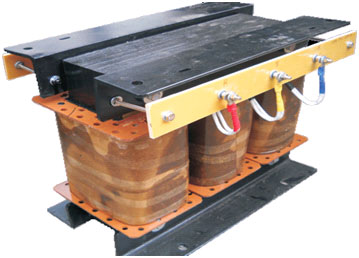

ULTRA ISOLATION TRANSFORMER
Its an construction in which all types of electrical noise predominantly common mode noise is eliminated by this UIT. Since it isolates primary and secondary and separated neutral to ground bond on the secondary side it can be used to create separately derived source to combat current loops.
The special construction use Faraday's shielding box to totally block the transfer of electric noise even by static charge or by way of proximity of R.F. Noises.
High insulating materials with special shielding techniques attenuate common mode noise as well minimize transverse mode noise.
The specially selected core with its magnetic properties exhibit sufficient leakage inductance to attenuate noise with proper transfer of fundamental power frequency. The UIT is designed with split winding construction and bifilar connections to reduce coupling capacitance of winding.
Rating
10 KVA to 2000 KVA
| Input Voltage | : 230 / 415 V (acceptable ± 10%) 1ø / 3ø + Neutral (OR as per customer's requirement) |
| Output Voltage | : 230 / 415 V (same as input) 1ø / 3ø + Neutral (OR as per customer's requirement) |
| Transformer Ratio | : 1:1 (Or as per customer's requirement) |
| DC Galvanic Isolation | : Over 100 mega-ohms between windings or any winding to ground at 500 V DC |
| Breakdown Strength Common Mode Noise | : 2500 volts AC for 2 minutes |
| Rejection | : Better than 110 dB |
| Coupling Capacitance | : 0.005 to 0.009pF |
| Line frequency | : 47 to 63 Hz |
| Load Regulation | : Within & upto 4% |
| Cooling | : Air/Oil cooled |
| Construction | : Powder coated sheet metal enclosure with Input/Output terminations through brass/copper studs |
- USP
- No impedance matching required
- Low leakage current
- Wide operating power factor
- Low transverse mode noise
